Product Details
Certification: ROHS
Model Number: 8484-11B1-RK-TP
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Digi-Key Part Number: |
3M8411B1-ND |
Digi-Key Part Number: |
3M8411B1-ND |

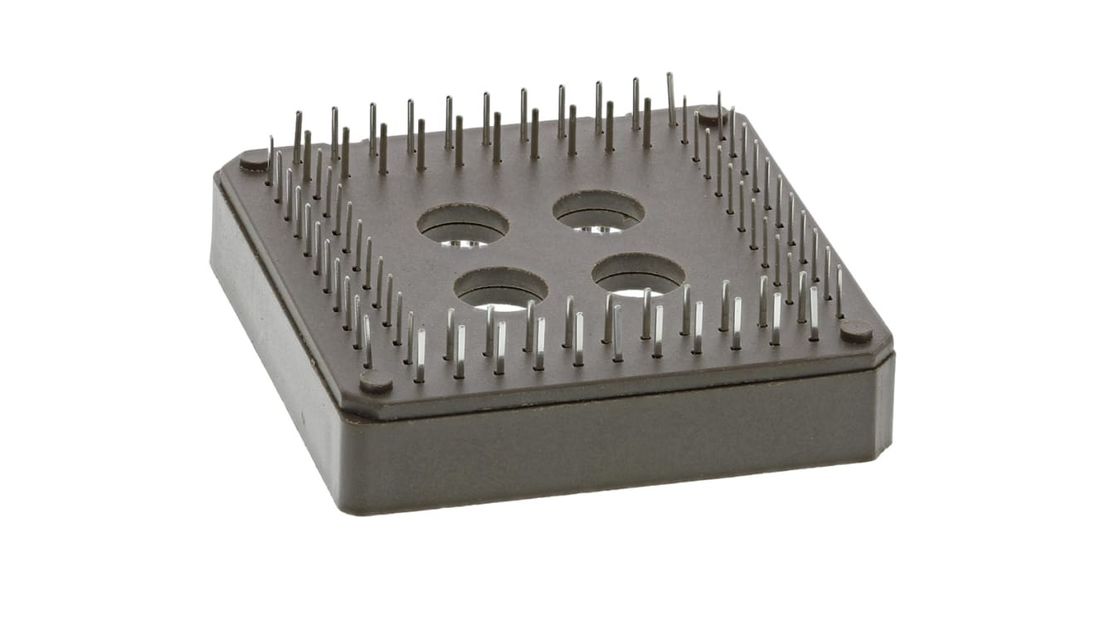

8484-11B1-RK-TP Na Integrated Circuits Gates And Inverters Specialized
Product Attributes
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Sockets for ICs, Transistors | |
| IC Sockets | |
| Mfr | 3M |
| Series | 8400 |
| Package | Tube |
| Product Status | Active |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 84 (4 x 21) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Through Hole |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
| Termination Post Length | 0.132" (3.35mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | - |
| Base Product Number | 8484 |
Documents & Media
| RESOURCE TYPE | LINK |
| Datasheets | 8400 Series, Thru-Hole |
| CAD Models | 8484-11B1-RK-TP - Models |
| HTML Datasheet | 8400 Series, Thru-Hole |
| EDA Models | 8484-11B1-RK-TP - Models |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | 51111663110 |
| 80000905291 | |
| 5111166311 | |
| 848411B1RKTP | |
| 51111663110 | |
| 3M8411B1 | |
| 7000057172 | |
| Standard Package | 16 |
FAQ
Q: What's your MOQ?
A: We provide you small MOQ for each item, some items will be one for sale.
Q: How about your delivery time?
A: Generally, our stock products will be shipped in 2-3 days after payment received, finally depends on order quantities.
Q: What's your warranty?
A: All our products will be 100% test before shipment, all have 360 days warranty.
Q: Can I get a Free Sample?
A: You can ask our staff for apply Free Samples.
Q: Do you also support quote BOM list? then ship to us together?
A: of course, we also support to quote BOM list and ship all components together, please send to us for check, and we have professional team to quote immediately.
Q: How to contact us?
A: Send your inquiry details, click "Send" Now!!!
