Product Details
Certification: ROHS
Model Number: D2816-42
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Digi-Key Part Number: |
952-2211-ND |
Digi-Key Part Number: |
952-2211-ND |

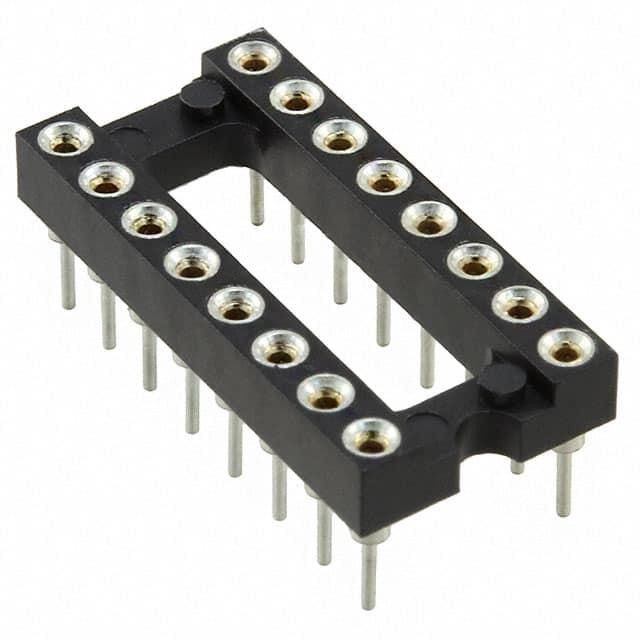

D2816-42 Na ICS Motion Sensors Inclinometers Temperature Sensors
Product Attributes
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Sockets for ICs, Transistors | |
| IC Sockets | |
| Mfr | Harwin Inc. |
| Series | D2 |
| Package | Tube |
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Material - Post | Brass |
| Housing Material | Plastic |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.126" (3.20mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | 10mOhm |
| Base Product Number | D2816 |
Documents & Media
| RESOURCE TYPE | LINK |
| Datasheets | Round Pin lC Sockets Spec Sheet |
| D28xxx-42 Drawing | |
| Video File | Harwin’s Company Overview |
| Environmental Information | RoHS Cert D2816-42 |
| Harwin REACH | |
| HTML Datasheet | D28xxx-42 Drawing |
| Round Pin lC Sockets Spec Sheet |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | 952-2211 |
| D281642 | |
| Standard Package | 25 |
FAQ
Q: What's your MOQ?
A: We provide you small MOQ for each item, some items will be one for sale.
Q: How about your delivery time?
A: Generally, our stock products will be shipped in 2-3 days after payment received, finally depends on order quantities.
Q: What's your warranty?
A: All our products will be 100% test before shipment, all have 360 days warranty.
Q: Can I get a Free Sample?
A: You can ask our staff for apply Free Samples.
Q: Do you also support quote BOM list? then ship to us together?
A: of course, we also support to quote BOM list and ship all components together, please send to us for check, and we have professional team to quote immediately.
Q: How to contact us?
A: Send your inquiry details, click "Send" Now!!!
