Product Details
Certification: ROHS
Model Number: H3165-01
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Digi-Key Part Number: |
952-1465-ND |
Digi-Key Part Number: |
952-1465-ND |

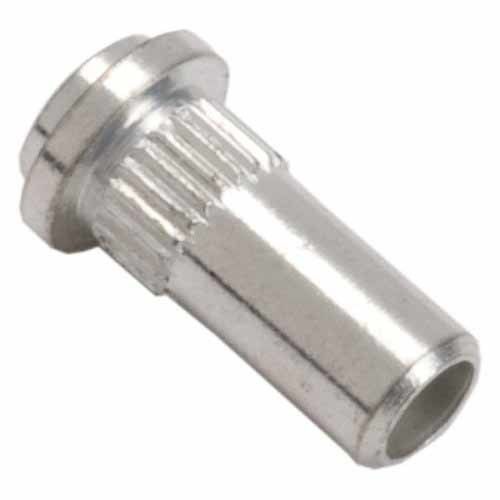

H3183-01 Na ICS Microcontrollers Linear Compass ICs
Find information here in stock.xlsx
Product Attributes
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Terminals | |
| PC Pin Receptacles, Socket Connectors | |
| Mfr | Harwin Inc. |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Press-Fit, Knurled |
| Length - Overall | 0.222" (5.65mm) |
| Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) |
| Flange Diameter | 0.105" (2.67mm) |
| Tail Diameter | - |
| Socket Depth | 0.187" (4.75mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.90µin (0.150µm) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Board Thickness | - |
| Insertion Force | 3.00N ~ 9.00N |
| Base Product Number | H3165 |
Documents & Media
| RESOURCE TYPE | LINK |
| Datasheets | 1.0mm P.C. Sockets Spec Sheet |
| H3165 Drawing | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets |
| Video File | Harwin’s Company Overview |
| Environmental Information | Harwin REACH |
| RoHS Cert H3165-01 | |
| HTML Datasheet | 1.0mm P.C. Sockets Spec Sheet |
| H3165 Drawing |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | H316501 |
| 952-1465 | |
| Standard Package | 1,000 |
FAQ
Q: What's your MOQ?
A: We provide you small MOQ for each item, some items will be one for sale.
Q: How about your delivery time?
A: Generally, our stock products will be shipped in 2-3 days after payment received, finally depends on order quantities.
Q: What's your warranty?
A: All our products will be 100% test before shipment, all have 360 days warranty.
Q: Can I get a Free Sample?
A: You can ask our staff for apply Free Samples.
Q: Do you also support quote BOM list? then ship to us together?
A: of course, we also support to quote BOM list and ship all components together, please send to us for check, and we have professional team to quote immediately.
Q: How to contact us?
A: Send your inquiry details, click "Send" Now!!!
