Product Details
Certification: ROHS
Model Number: STL285N4F7AG
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Manufacturer Part Number: |
STL285N4F7AG |
Manufacturer: |
STMicroelectronics |
Description: |
MOSFET N-CH 40V 120A POWERFLAT |
Product Status: |
Active |
FET Type: |
N-Channel |
Drain To Source Voltage (Vdss): |
40 V |
Current - Continuous Drain (Id) @ 25°C: |
120A (Tc) |
Operating Temperature: |
-55°C ~ 175°C (TJ) |
Manufacturer Part Number: |
STL285N4F7AG |
Manufacturer: |
STMicroelectronics |
Description: |
MOSFET N-CH 40V 120A POWERFLAT |
Product Status: |
Active |
FET Type: |
N-Channel |
Drain To Source Voltage (Vdss): |
40 V |
Current - Continuous Drain (Id) @ 25°C: |
120A (Tc) |
Operating Temperature: |
-55°C ~ 175°C (TJ) |

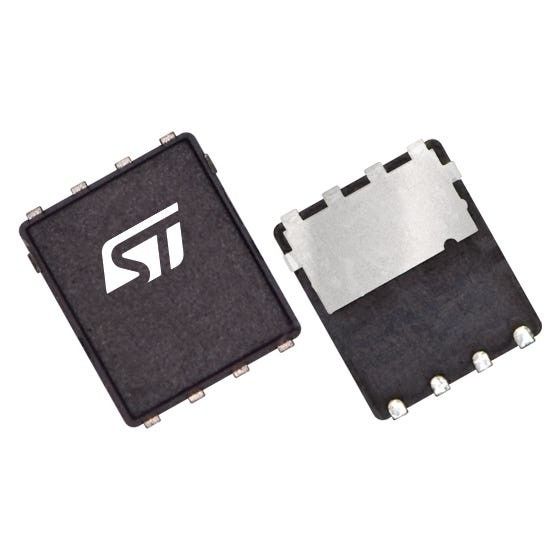

Bom List Mcu Electronic Components STM32F205ZET6 M24512-DFDW6TP STL285N4F7AG STP70N10F4 Ic Chip
Product Attributes
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors - FETs, MOSFETs - Single | |
| Mfr | STMicroelectronics |
| Series | STripFET™ F7 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.1mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5600 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 188W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | STL285 |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
Electronic components ICXP various brands of high quality goods Can be applied to automobile appliance chips of various kinds of consumer appliances
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1:What’s your MOQ?
No MOQ needed, And if you buy more, Will enjioy better prices.
Q2:Can I get a Free Sample?
You can ask our staff for apply Free Samples.
Q3:What payment methods do you support?
We provide: Visa / MasterCard / Wire Transfer / WU / MG / PayPal etc...
Q4:What about the shipment methods?
We provide: DHL / UPS / TNT / FedEx / EMS / Aramex / ePacket etc...
Q5:How will you Guaranteed quality? Quality Warranty Period:12 Months Q6:Are the products tested before shipment?
All products were tested before shipment, and the quality problems werenegligible.
Q7:Do you provide BOM services?
Yes, We provide one-stop purcharse service, Please send us your BOM list.
