Product Details
Brand Name: Intel (formerly Altera)
Certification: ROHS
Model Number: EPM240GT100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Manufacturer Product Number: |
EPM240GT100 |
Logic Cells: |
240 |
I/O Pins: |
92 |
Maximum Operating: |
3.3V |
Maximum Frequency: |
261MHz |
Package: |
100-pin TQFP |
Manufacturer Product Number: |
EPM240GT100 |
Logic Cells: |
240 |
I/O Pins: |
92 |
Maximum Operating: |
3.3V |
Maximum Frequency: |
261MHz |
Package: |
100-pin TQFP |

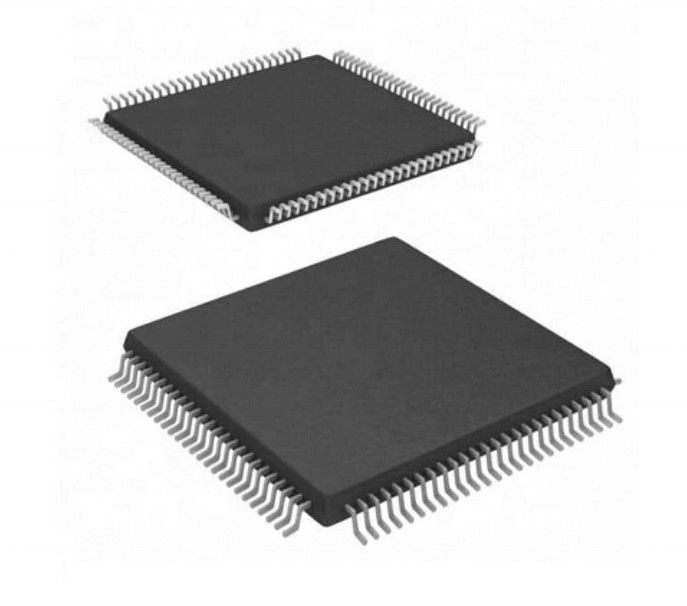

EPM240GT100 - MAX II CPLD
Find information here in stock.xlsx
Introduction:
The EPM240GT100 is a Complex Programmable Logic Device (CPLD) from the MAX II family of CPLDs manufactured by Intel (formerly Altera). CPLDs are programmable digital circuits used to implement complex logic functions. The MAX II family is a low-power, high-performance CPLD family with a range of densities and features. The EPM240GT100 is a 240 macrocell CPLD that offers high-speed logic and efficient use of power, making it suitable for a variety of applications.
Applications:
Medical Equipment, Automotive, Industrial Control
Product Attributes:
| Brand | Intel (formerly Altera) |
|---|---|
| Logic Cells | 240 |
| I/O Pins | 92 |
| Maximum Operating | 3.3V |
| Voltage | |
| Package Type | 100-pin TQFP |
| Maximum Frequency | 261MHz |
| JTAG | Yes |
More Products:
FAQ:
Q1: What is a CPLD?
A: A CPLD (Complex Programmable Logic Device) is a programmable digital circuit that is used to implement complex logic functions.
Q2: What is the MAX II family of CPLDs?
A: The MAX II family of CPLDs is a low-power, high-performance CPLD family manufactured by Intel (formerly Altera).
Q3: What is the logic capacity of the EPM240GT100?
A: The EPM240GT100 is a 240 macrocell CPLD.
Q4: How many I/O pins does the EPM240GT100 have?
A: The EPM240GT100 has 92 programmable I/O pins.
Q5: What is the maximum operating voltage of the EPM240GT100?
A: The EPM240GT100 operates at a maximum voltage of 3.3V.
Q6: What is the package type of the EPM240GT100?
A: The EPM240GT100 comes in a 100-pin TQFP package.
Q7: What is the maximum frequency of the EPM240GT100?
A: The EPM240GT100 has a maximum frequency of 261MHz.
Q8: Does the EPM240GT100 support JTAG?
A: Yes, the EPM240GT100 supports JTAG (Joint Test Action Group) for in-system programming and testing.
