Product Details
Brand Name: Analog Devices
Certification: ROHS
Model Number: AD8418AWBRZ-RL
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Manufacturer Product Number: |
AD8418AWBRZ-RL |
Number Of Channels: |
1 |
Input Voltage Range: |
±200 MV |
Supply Voltage Range: |
2.7 V To 5.5 V |
Slew Rate: |
27 V/μs |
Gain Bandwidth Product: |
2.8 MHz |
Manufacturer Product Number: |
AD8418AWBRZ-RL |
Number Of Channels: |
1 |
Input Voltage Range: |
±200 MV |
Supply Voltage Range: |
2.7 V To 5.5 V |
Slew Rate: |
27 V/μs |
Gain Bandwidth Product: |
2.8 MHz |

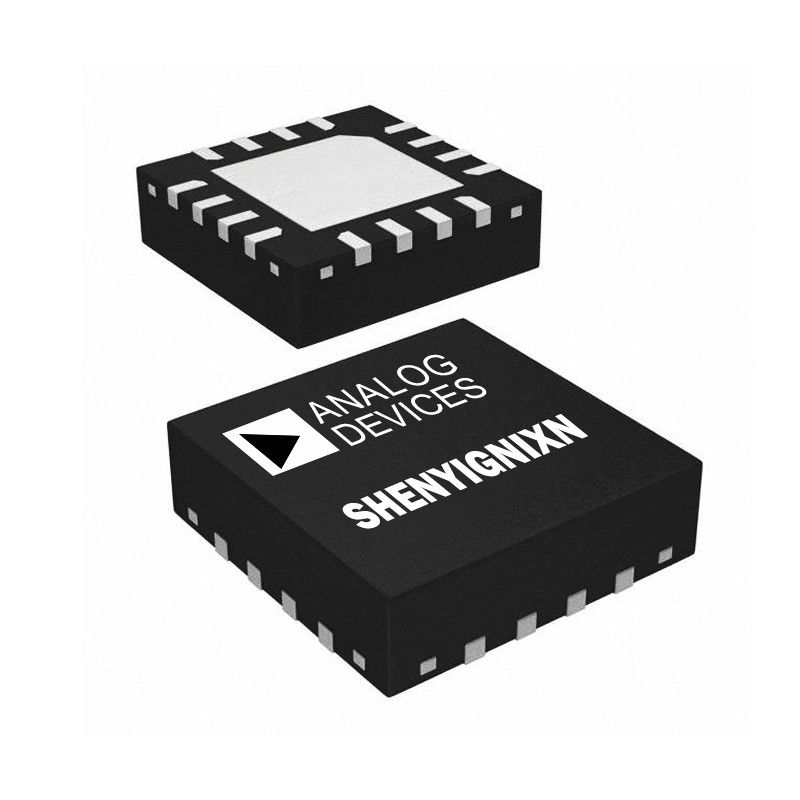

AD8418AWBRZ-RL: A High-Speed, Current Sense Amplifier for Power Management
Find information here in stock.xlsx
Introduction:
AD8418AWBRZ-RL is a high-speed, current sense amplifier that is designed for power management applications. It provides high accuracy and stability in measuring current and voltage, making it an ideal solution for power monitoring in various systems.
Applications:
AD8418AWBRZ-RL is commonly used in power management applications such as motor control, power supplies, battery management, and current sensing in automotive and industrial applications.
Product Attributes:
| Product Attributes | Value |
|---|---|
| Brand | Analog Devices |
| Number of Channels | 1 |
| Input Voltage Range | ±200 mV |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Slew Rate | 27 V/μs |
| Gain Bandwidth Product | 2.8 MHz |
| Input Offset Voltage | 50 μV |
| Input Bias Current | 50 nA |
| Output Voltage Range | 0 V to VCC-1.5 V |
| Quiescent Current | 500 μA |
Similar Products:
FAQ:
Q: What is the supply voltage range for AD8418AWBRZ-RL? A: The supply voltage range for AD8418AWBRZ-RL is 2.7 V to 5.5 V.
Q: What is the input voltage range for AD8418AWBRZ-RL? A: The input voltage range for AD8418AWBRZ-RL is ±200 mV.
Q: What is the gain bandwidth product for AD8418AWBRZ-RL? A: The gain bandwidth product for AD8418AWBRZ-RL is 2.8 MHz.
Q: What is the input offset voltage for AD8418AWBRZ-RL? A: The input offset voltage for AD8418AWBRZ-RL is 50 μV.
Q: What is the output voltage range for AD8418AWBRZ-RL? A: The output voltage range for AD8418AWBRZ-RL is 0 V to VCC-1.5 V.
Q: What is the quiescent current for AD8418AWBRZ-RL? A: The quiescent current for AD8418AWBRZ-RL is 500 μA.
Q: Is AD8418AWBRZ-RL suitable for automotive applications? A: Yes, AD8418AWBRZ-RL is suitable for automotive applications such as battery management and motor control.
Q: What is the advantage of using AD8418AWBRZ-RL in power supplies? A: AD8418AWBRZ-RL provides accurate and stable current sensing, which is essential for efficient power management in power supplies.
