Product Details
Brand Name: Analog Devices Inc.
Certification: ROHS
Model Number: HMC7584LG
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Digi-Key Part Number:  |
                        1127-3350-ND  |
                                                                                                                    Manufacturer:  |
                        Analog Devices Inc.  |
                                                                         Manufacturer Product Number:  |
                        HMC7584LG  |
                                                                                                                    Description:  |
                        IC RF AMP GPS 71GHZ-76GHZ 50LGA  |

                                                                                            Detailed Description:  |
                        RF Amplifier IC General Purpose 71GHz ~ 76GHz 50-LGA (16x14)  |
                                                                                                                    Product Status:  |
                        Obsolete  |



Digi-Key Part Number:  |
                            1127-3350-ND  |

Manufacturer:  |
                            Analog Devices Inc.  |

Manufacturer Product Number:  |
                            HMC7584LG  |

Description:  |
                            IC RF AMP GPS 71GHZ-76GHZ 50LGA  |

Detailed Description:  |
                            RF Amplifier IC General Purpose 71GHz ~ 76GHz 50-LGA (16x14)  |

Product Status:  |
                            Obsolete  |

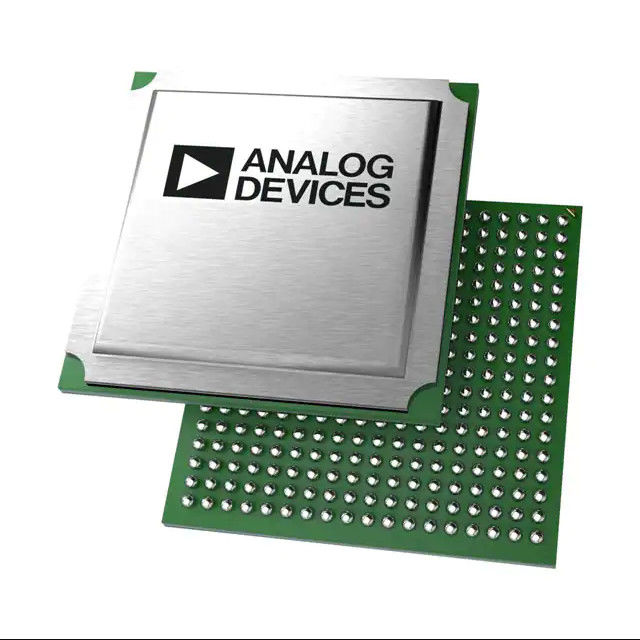

New Original Stock Ic Chips Supporting One Start Integrated Circuit HMC7584LG
Find information here in stock.xlsx
Product Attributes
| TYPE | DESCRIPTION |
| Category | RF/IF and RFID |
| RF Amplifiers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tray |
| Product Status | Obsolete |
| Frequency | 71GHz ~ 76GHz |
| P1dB | 24dBm |
| Gain | 23.5dB |
| Noise Figure | 21.5dB |
| RF Type | General Purpose |
| Voltage - Supply | -5V ~ 0V |
| Current - Supply | - |
| Test Frequency | - |
| Mounting Type | Surface Mount |
| Package / Case | 50-LGA |
| Supplier Device Package | 50-LGA (16x14) |
| Base Product Number | HMC758 |
Documents & Media
| RESOURCE TYPE | LINK |
| Datasheets | HMC7584LG |
| Product Training Modules | RF Amplifiers Improving Gain with Matching |
| Featured Product | Interactive RF Signal Chain |
| Analog Devices IoT and the Intelligence of Things | |
| PCN Obsolescence/ EOL | Mult Dev EOL 15/Jun/2020 |
| PCN Design/Specification | HMC7584 03/Oct/2019 |
| HTML Datasheet | HMC7584LG |
| EDA Models | HMC7584LG - Models |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| ECCN | 5A991B |
| HTSUS | 8542.39.0001 |
Additional Resources
| Other Names | HMC7584LG-ND |
| 1127-3350 | |
| Standard Package | 1 |
![]()
![]()
![]()
