Product Details
Certification: ROHS
Model Number: Y14870R00500B9R
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Digi-Key Part Number: |
804-1043-2-ND |
Manufacturer: |
Vishay Foil Resistors (Division Of Vishay Precision Group) |
Manufacturer Product Number: |
Y14870R00500B9R |
Description: |
RES 0.005 OHM 0.1% 1W 2512 |
Detailed Description: |
5 MOhms ±0.1% 1W Chip Resistor 2512 (6432 Metric) Current Sense, Moisture Resistant Metal Foil |
Product Status: |
Obsolete |
Digi-Key Part Number: |
804-1043-2-ND |
Manufacturer: |
Vishay Foil Resistors (Division Of Vishay Precision Group) |
Manufacturer Product Number: |
Y14870R00500B9R |
Description: |
RES 0.005 OHM 0.1% 1W 2512 |
Detailed Description: |
5 MOhms ±0.1% 1W Chip Resistor 2512 (6432 Metric) Current Sense, Moisture Resistant Metal Foil |
Product Status: |
Obsolete |

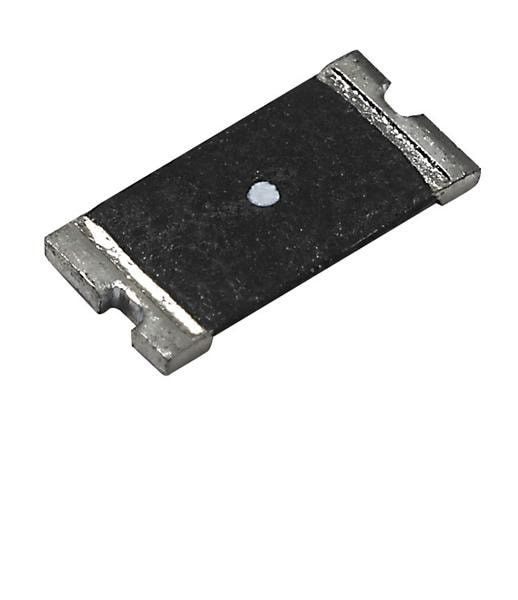

Y14870R00500B9R 2512(6432Metric) Integrated Circuits Connector Adapter Kits Universal Bus Functions
Product Attributes
TYPE | DESCRIPTION |
Category | Resistors |
Chip Resistor - Surface Mount | |
Mfr | Vishay Foil Resistors (Division of Vishay Precision Group) |
Series | CSM |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Product Status | Obsolete |
Resistance | 5 mOhms |
Tolerance | ±0.1% |
Power (Watts) | 1W |
Composition | Metal Foil |
Features | Current Sense, Moisture Resistant |
Temperature Coefficient | ±15ppm/°C |
Operating Temperature | -65°C ~ 170°C |
Package / Case | 2512 (6432 Metric) |
Supplier Device Package | - |
Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
Height - Seated (Max) | 0.035" (0.89mm) |
Number of Terminations | 4 |
Failure Rate | - |
Documents & Media
RESOURCE TYPE | LINK |
Datasheets | CSM Series (1487,88) ~ |
Product Training Modules | Bulk Metal Foil Resistor Advantages & Accelerated Life Test Video |
PCN Obsolescence/ EOL | DK OBS NOTICE |
PCN Assembly/Origin | CSM2512/3637 Supplier Chg 25/Jun/2019 |
EDA Models | Y14870R00500B9R - Models |
Environmental & Export Classifications
ATTRIBUTE | DESCRIPTION |
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
ECCN | EAR99 |
HTSUS | 8533.21.0030 |
Additional Resources
ATTRIBUTE | DESCRIPTION |
Other Names | 804-1043-2 |
804-1043-1 | |
Y14870R00500B9R-ND | |
804-1043-6 | |
Standard Package | 50 |
