Product Details
Certification: ROHS
Model Number: UVY2C220MPD1TD
Payment & Shipping Terms
Minimum Order Quantity: Negotiated
Price: Negotiated
Packaging Details: Tray/REEL
Delivery Time: 3-15days
Stock: 8000
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Description: |

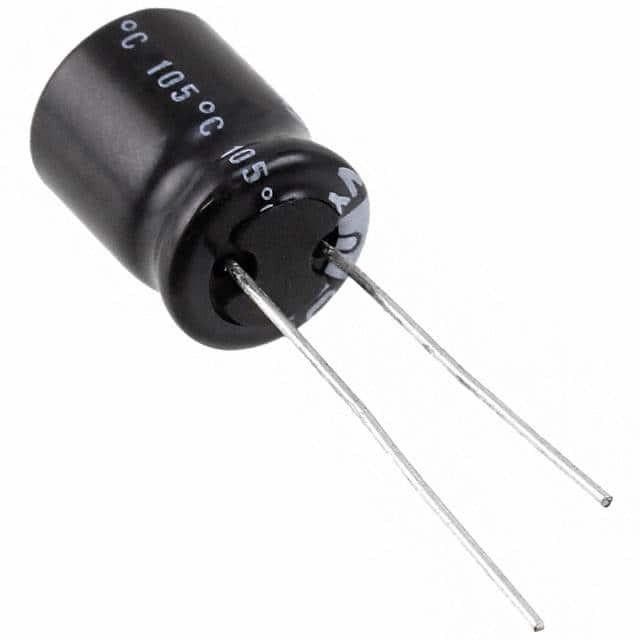

CAP ALUM 22UF 20% 160V RADIAL |
Digi-Key Part Number: |
493-12964-1-ND |
Manufacturer: |
Nichicon |
Manufacturer Product Number: |
UVY2C220MPD1TD |
Detailed Description: |
22 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C |
Product Status: |
Not For New Designs |
Description: |
CAP ALUM 22UF 20% 160V RADIAL |
Digi-Key Part Number: |
493-12964-1-ND |
Manufacturer: |
Nichicon |
Manufacturer Product Number: |
UVY2C220MPD1TD |
Detailed Description: |
22 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C |
Product Status: |
Not For New Designs |
UVY2C220MPD1TD RadialCan Integrated Circuits Amplifiers Demultiplexers
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Nichicon |
| Series | UVY |
| Package | Cut Tape (CT) |
| Tape & Box (TB) | |
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 92 mA @ 120 Hz |
| Ripple Current @ High Frequency | 105.8 mA @ 10 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | UVY2C |
Documents & Media
| RESOURCE TYPE | LINK |
| Datasheets | UVY Series |
| Miniature Type Taping Spec | |
| Video File | Doctor Capacitor Episode Three: Failure Modes |
| Doctor Capacitor® Episode Eight: Nichicon Kitchen (or, all about soldering) | |
| Doctor Capacitor Episode Two: Terms | |
| Doctor Capacitor® Episode Nine: You Callin' Me? | |
| Doctor Capacitor® Episode Seven: What's In The Mail, Doc? | |
| HTML Datasheet | Miniature Type Taping Spec |
| UVY Series | |
| EDA Models | UVY2C220MPD1TD - Models |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
Additional Resources
| ATTRIBUTE | DESCRIPTION |
| Other Names | 493-12964-3 |
| Standard Package | 500 |
