10V 8SOIC PMIC Chip REF01CSZ-REEL7 REF01AJ/883C REF01EZ REF01HZ IC VREF SERIES

FEATURES
High output accuracy
REF01: 10.0 V, ±0.3% maximum
REF02: 5.0 V, ±0.3% maximum
REF03: 2.5 V, ±0.6% maximum
Adjustable output: ± 3% minimum
Excellent temperature stability
REF01: 8.5 ppm/°C maximum
REF02: 8.5 ppm/°C maximum
REF03: 50 ppm/°C maximum
Low noise
REF01: 30 µV p-p typical
REF02: 15 µV p-p typical
REF03: 6 µV p-p typical
High supply voltage range: up to 36 V maximum
Low supply current: 1.4 mA maximum
High load-driving capability: 10 mA maximum
Temperature output function
APPLICATIONS
Precision data systems
High resolution converters
Industrial process control systems
Precision instruments
Military and aerospace applications


GENERAL DESCRIPTION
The REF01/REF02/REF03 series of precision voltage references
provide a stable 10.0 V, 5.0 V, or 2.5 V output with minimal change
in response to variations in supply voltage, ambient temperature

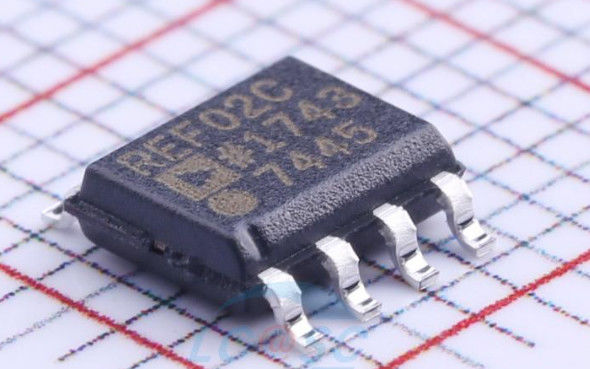

or load conditions. The devices are available in 8-lead SOIC, PDIP,
CERDIP, and TO-99 packages, as well as 20-terminal LCC
packages (883 only), furthering the usability of the devices in
both standard and high stress applications.
With an external buffer and a simple resistor network, the
TEMP terminal can be used for temperature sensing and
approximation. A TRIM terminal is also provided on the
device for fine adjustment of the output voltage.
The small footprint, wide supply range, and application
versatility make the REF01/REF02/REF03 series of references
ideal for general-purpose and space-constrained applications.
Newer designs should use the ADR01/ADR02/ADR03/ADR06
series of references, which offer higher accuracy and temperature

All the PMIC are available from us. Please email for detail .
