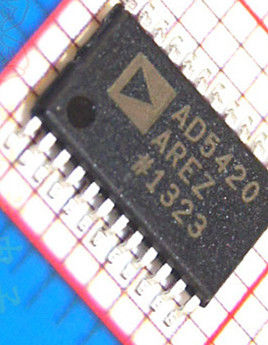

AD5420AREZ IC DAC 16BIT 1CH SER 24TSSOP
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| PACKAGE: | TSSOP24 | ||
|---|---|---|---|
| High Light: | dac ic chip,digital to analog converter chip |
||
| Product Attributes | Find Similar Products | Select All | |
| Categories | Integrated Circuits (ICs) | |
|---|---|---|
| Data Acquisition - Digital to Analog Converters (DAC) | ||
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
Packaging  |
Tube |
|
| Part Status | Active | |
| Number of Bits | 16 | |
| Number of D/A Converters | 1 | |
| Settling Time | 40µs | |
| Output Type | Current - Buffered | |
| Differential Output | No | |
| Data Interface | SPI, DSP | |
| Reference Type | External, Internal | |
| Voltage - Supply, Analog | 10.8 V ~ 40 V | |
| Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
| INL/DNL (LSB) | -, ±1 (Max) | |
| Architecture | R-2R | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 24-TSSOP-EP | |
| Mounting Type | Surface Mount | |
| Base Part Number | AD5420 |
AD5421BREZ-REEL7
AD5421BCPZ-REEL7
AD5421CREZ
AD5422AREZ-REEL
AD5422ACPZ-REEL7
AD5422BREZ-REEL
AD5424YRUZ-REEL7
AD5425YRMZ
AD542AD
These items are also available from us.
